JOANLAB VORTEX MIXER WITH MULTIFUNCTION
- Digital display available;Stepless speed regulation;Touch/ run easy to switch.
- Ultra-low body stable operation/ Brushless motor with string power.
- With various fixtures,suitable for centrifugal tube, blood tube,PCR plate cell cultrue plate and so on.
DETAILS
| Model |
VM – 500S |
VM – 500Pro |
| Operating mode | Tounch / Run | |
| Control mode |
Konb speed adjustment |
PWM speed adjustment |
| Display |
NO |
LCD |
| Motor |
Brushless motor |
|
| Amplitude | 4.5MM circular oscillation | |
| Capacity |
50ml*4 / 15ml*9 / 5-10ml*12 / 2ml*24 |
|
| Speed range | Tounch: 0-3000 rpm
Run: 200-3000 rpm |
Tounch: 0-3000 rpm
Run: 100-3000 rpm |
| Timing / Time | 1-99min Or 1-59sec | |
| Shell protection level | IP21 | |
| Voltage | AC 100-240V / DC24V | |
| Power |
20W | |
| Temperature | 5 – 40℃，80%RH | |
Product Description
The JOANLAB multifunctional vortex mixer is a versatile laboratory instrument designed for efficient sample mixing across diverse applications. This advanced vortex mixer features digital display, stepless speed regulation, and easy touch/run mode switching, making it ideal for microbiology laboratories, clinical diagnostics, molecular biology, and food safety testing. The ultra-low body design ensures stable operation, while the powerful brushless motor delivers consistent performance for demanding laboratory workflows.
Key Features:

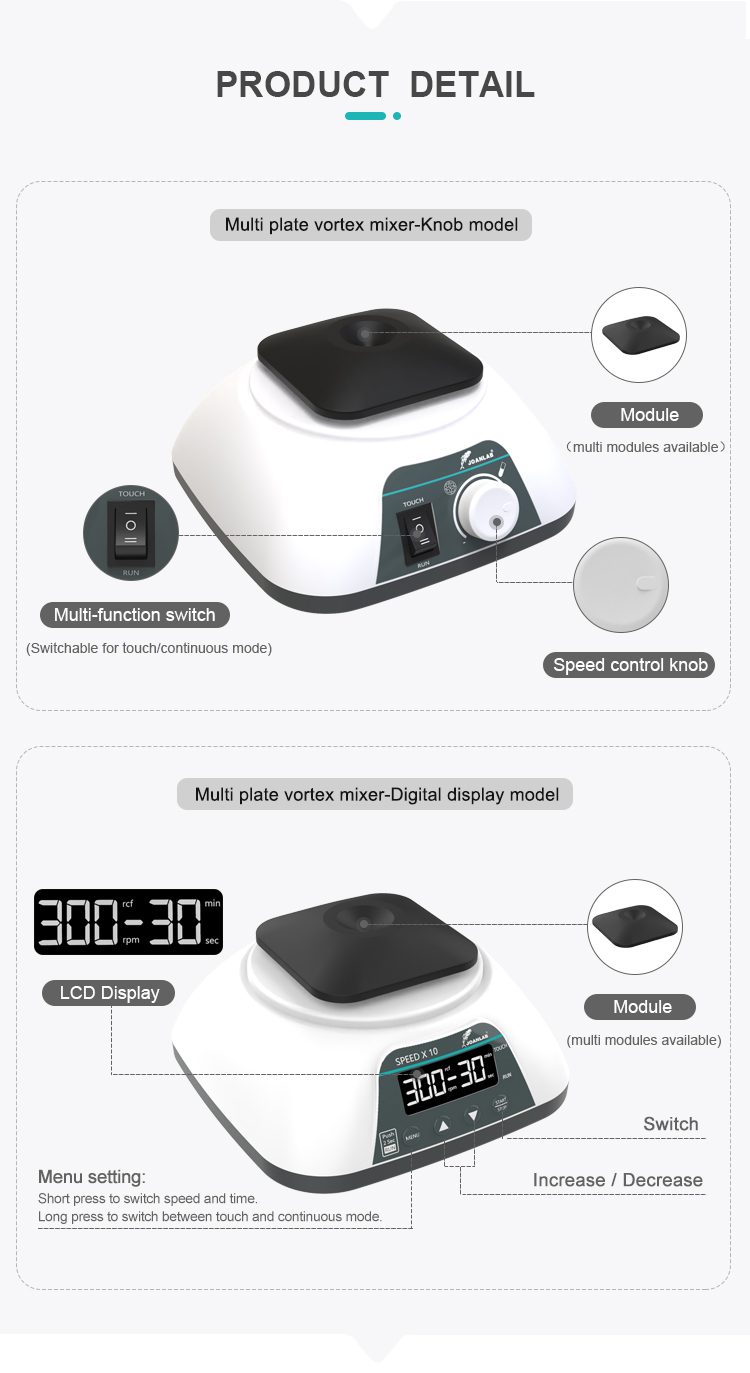

- Digital Display Available: Precise speed monitoring and control (VM-500Pro model)
- Stepless Speed Regulation: Smooth adjustment from 100-3000 rpm for optimal mixing
- Touch/Run Mode: Easy switching between touch-activated and continuous operation
- Ultra-Low Body Design: Stable operation minimizing vibration transfer
- Powerful Brushless Motor: Long-lasting performance with reduced maintenance

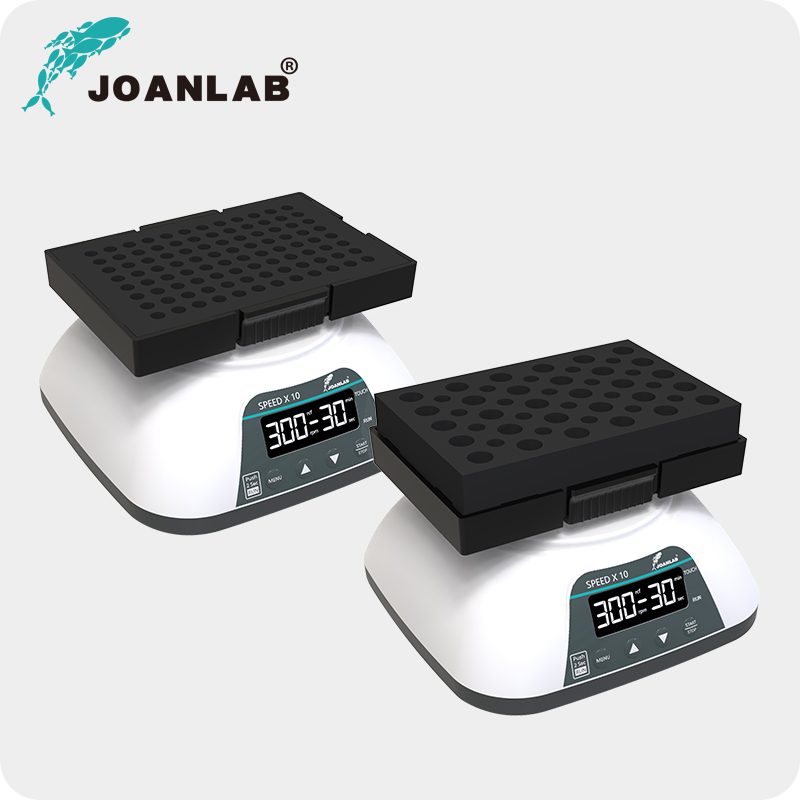

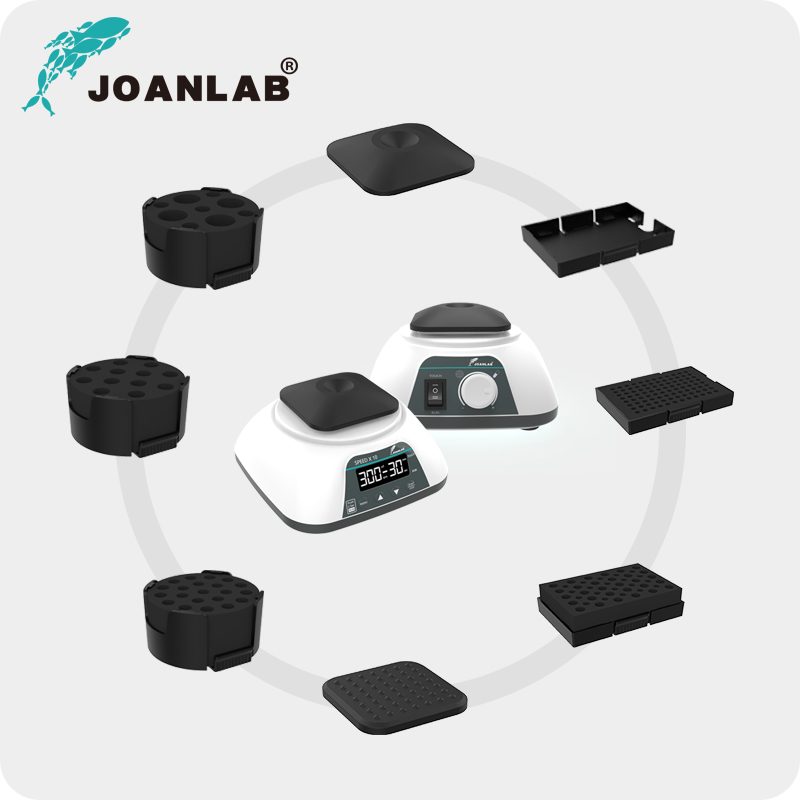

- Versatile Fixture Compatibility: Suitable for centrifugal tubes, blood tubes, PCR plates, cell culture plates, and more
Why Choose This Vortex Mixer?
The JOANLAB vortex mixer accommodates various laboratory vessel types including 50ml tubes (4 positions), 15ml tubes (9 positions), 5-10ml tubes (12 positions), and 2ml microtubes (24 positions). This flexibility makes the vortex mixer essential equipment for laboratories requiring consistent, reliable sample mixing across multiple protocols. The 4.5mm circular oscillation amplitude ensures thorough mixing without sample spillage or tube displacement.
